Catchpit Components
Mastercrete manufactures a full range of high-quality precast concrete catchpit components designed for stormwater drainage systems. These components are engineered to provide durable, cost-effective solutions for municipal, civil, and infrastructure projects.

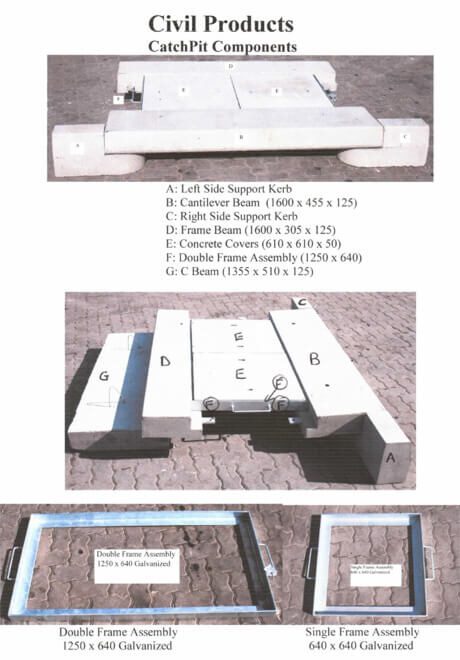

| Name | Dimensions | Weight |
|---|---|---|
| C-Beams | 1355mm x 510mm x 125mm | 205 kg |
| Frame Beams | 1600mm x 305mm x 125mm | 130 kg |
| Cantilever Beams | 1600mm x 455mm x 125mm | 196 kg |
| Double Frame Assembly | 1250mm x 640mm | 27 kg |
| Single Frame Assembly | 640mm x 640mm | 19 kg |
| Concrete Covers | 610mm x 610mm | 52 kg |
Features & Benefits
- Manufactured to comply with SANS 558 and SANS 1200 specifications
- Durable concrete mix ensures resistance to corrosion, water ingress, and heavy traffic loads
- Compatible with standard ductile iron covers and grates
- Speeds up site installation compared to cast in-situ construction
- Reduces long-term maintenance costs
Installation & Guarantees
Contact Mastercrete for available sizes, custom configurations, and delivery options. All catchpit units are backed by a 10-year product guarantee.
